Changeover Switch

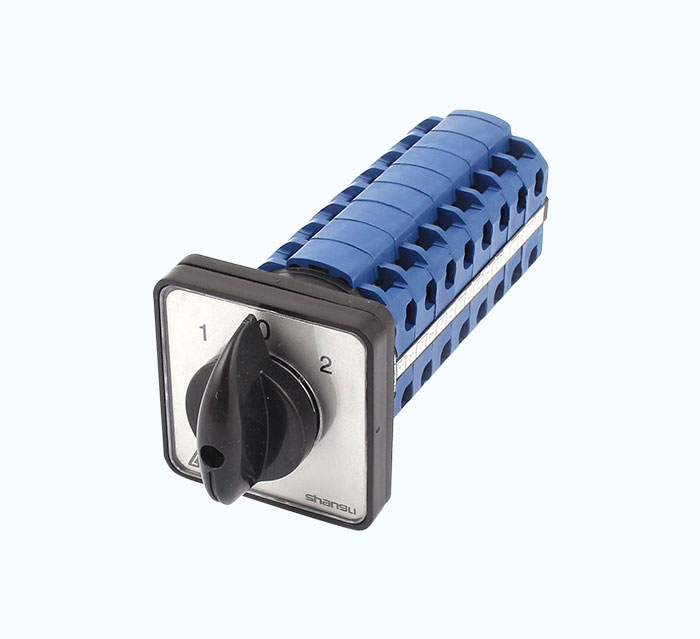

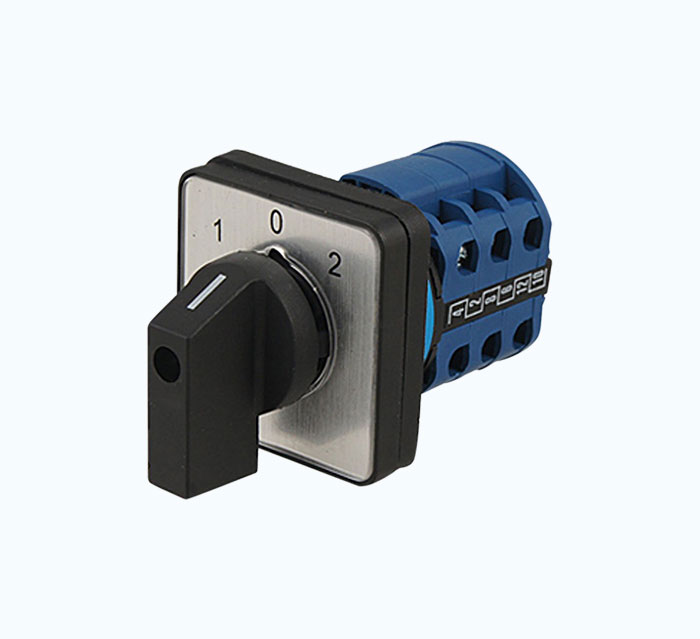

Rotary Cam Changeover Switch

● Made from self-extinguising thermoplastic housing
● Compact deisgn, multifuntional,premier isoluation, reliable and safety
● Available in 7 current ratings: 10A,20A,25A,32A,63A,125A
● Stages have 1,2,3,4,5,6,7,8,9,10,11 12 , more can be made on request
● Different type handles for your choice

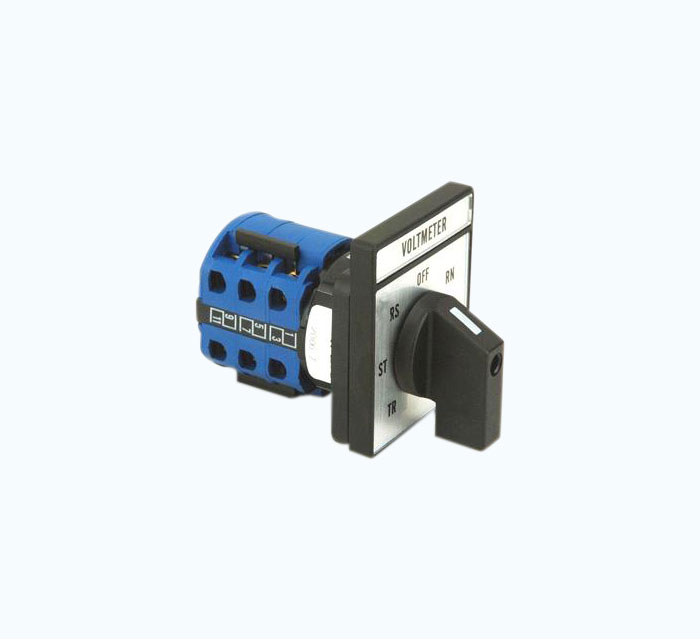

● Serve as motor control switch ,ammeter and volmeter switch,multi
● Comply with IEC60947-3 , IEC 6 0947-5-1

Technical Data

Model		LW28-10		LW28-20		LW28-25
Rated Insulation Voltage Ui	V	660		660		660
Ratedc Thermal Current Ith	A	10		20		25
Rated Working Voltage Ue	V	240	440	240	440	240	440
Rated Working Current Ie				20	20
AC-21A AC-22A	A	10	10	15	15	25	25
AC-23A	A	7.5	7.5	15	15	22	22
AC-2	A	7.5	7.5	11	11	22	22
AC-3	A	5.5	5.5	3.5	3.5	15	15
AC-4	A	1.75	1.75			6.5	6.5
Rated Control Power
AC-23A	KW	1.8	3	3.7/2.5	7.5/3.7	5.5/3	11/5.5
AC-2	KW	2.5	3.7	4	7.5	5.5	11
AC-3	KW	1.5	2.2	3/2.2	5.5/3	4/3	7.5/3.7
AC-4	KW	0.37	0.55	0.55/0.75	1.5/1.5	1.5/1.1	3/2.2

Model		LW28-32		LW28-20		LW28-25
Rated Insulation Voltage Ui	V	660		660		660
Ratedc Thermal Current Ith	A	32		63		125
Rated Working Voltage Ue	V	240	440	240	440	240	440
Rated Working Current Ie
AC-21A AC-22A	A	32	32	63	63	100	100
AC-23A	A	30	30	57	57	90	90
AC-2	A	30	30	57	57	90	90
AC-3	A	22	22	36	36	75	75
AC-4	A	11	11	15	15	30	30
Rated Control Power
AC-23A	KW	7.5/4	15/7.5	10/15	30/15	30/15	45/22
AC-2	KW	7.5	15	18.5	30	30	45
AC-3	KW	5.5/4	11/5.5	11/6	18.5/11	15/7.5	30/13
AC-4	KW	2.7/1.5	5.5/.	5.5/2.4	7.5/4	6/3	12/5.5
