Meter Socket
-

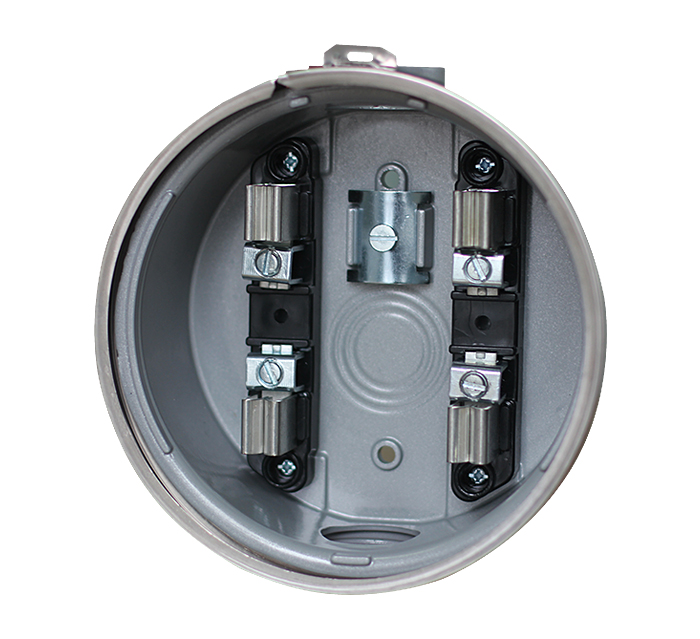

100A Round
● Enclosure: die-cast aluminium, light grey power finish
● Rating: 100A continuous duty, 600VAC max
● Jaws: tinned copper jaws
● Terminals: suppied with 4 terminals, 5th terminal option available
● Fixed Hub: 1/2" to 1-1/4" on top and bottom
● Sealing Ring: stainless steel, snap typeModel Description Hub Size MS100R-12 Single Phase 100A 4 Jaws 1/2" MS100R-34 Single Phase 100A 5 Jaws 3/4" MS100R-10 Single Phase 100A 6 Jaws 1" MS100R-114 Single Phase 100A 7 Jaws 1-1/4" 83001 Stainless steel, snap type N/A -

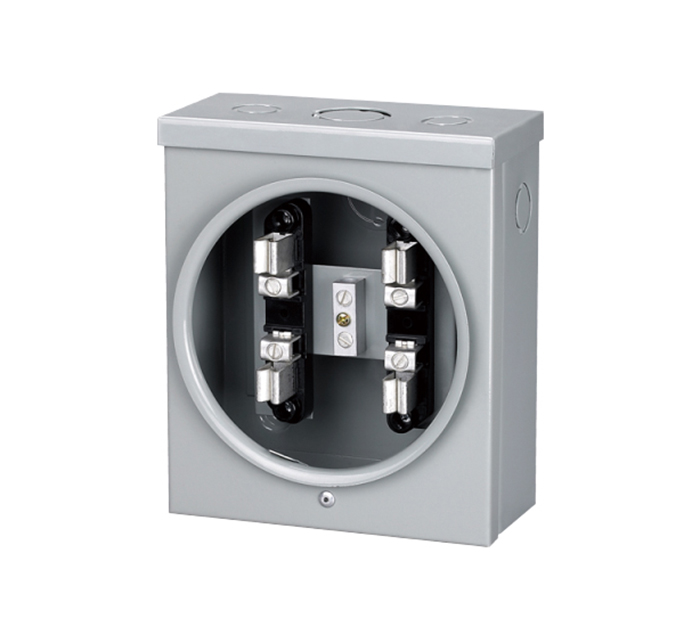

100A
● Enclosure: made of galvainzed steel sheet
● Rating: 100A continuous duty, 600VAC max
● Jaws: tinned copper jaws
● Terminals: supplid with 4 terminals
● Hub: dia-cast aliminium, size 1/2" to 1-1/4"Model Description MS100 Single Phase 100A 4 Jaws, Ring type -

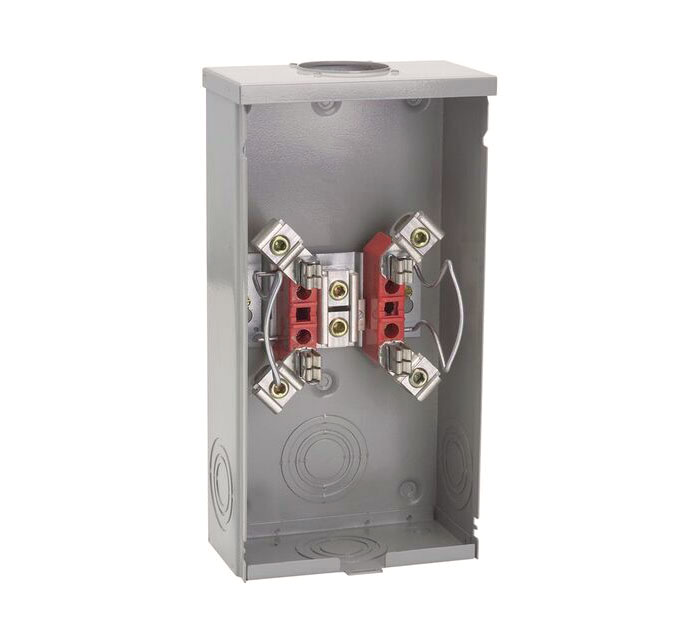

200A
● Enclosure: made of galvainized steel sheet
● Rating: 200A continuous duty, single phase ,600VAC max
● Jaws: heavy duty tinned copper jaws (reinforced clip option)
● Knockouts: concentric knockouts in the sides and bottom
● Terminal: lay in type terminals with pressure plate
● Hub: dia-cast aliminium, size 1/2" to 2-1/2"
Model Description MS200-4R Single Phase 100A 4 Jaws, ring type MS200-5R Single Phase 100A 5 Jaws, ring type MS200-4L Single Phase 100A 4 Jaws, ringless type MS200-5L Single Phase 100A 5 Jaws, ringless type -

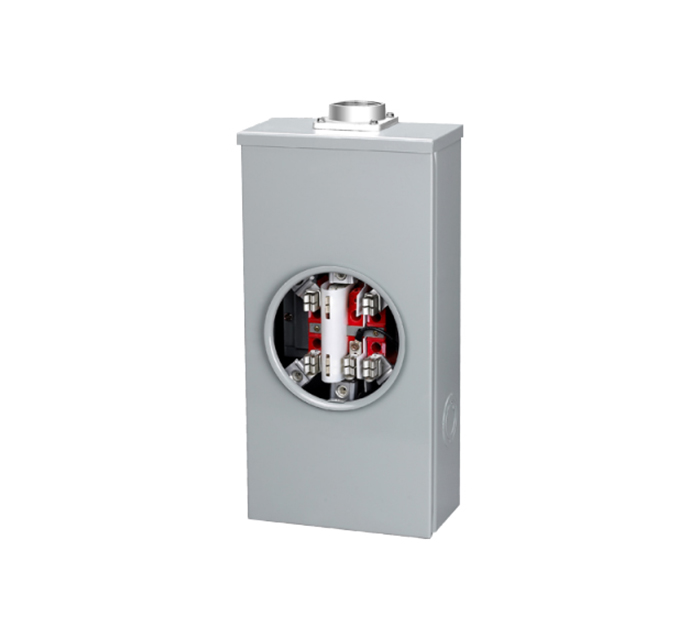

200A
● Enclosure: made of galvainized steel sheet
● Rating :200A continuous duty, three phase ,600VAC max
● Jaws: heavy duty tinned copper jaws (reinforced clip option)
● Knockouts: concentric knockouts in the sides and bottom
● Terminal: lay in type terminals with pressure plate
● Hub: dia-cast aliminium, size 1/2" to 2-1/2"Model Description MS200-7R Three Phase 100A 7 Jaws, ring type MS200-7L Three Phase 100A 7 Jaws, ringless type -

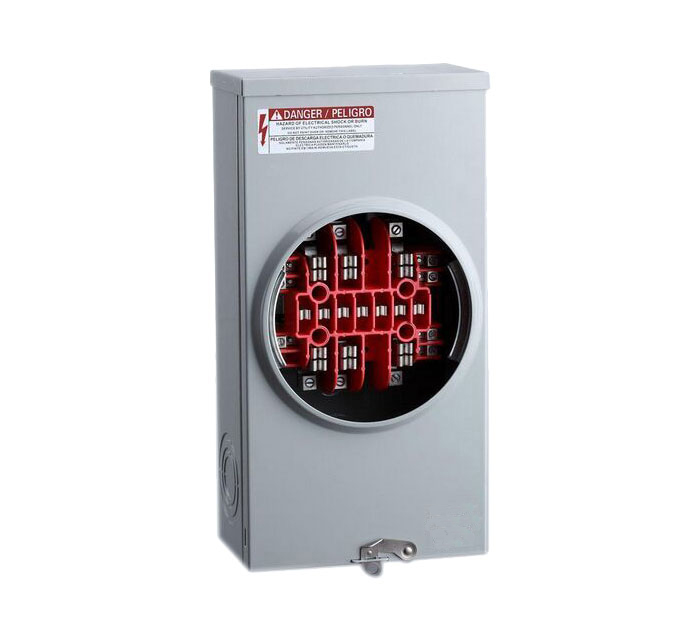

20A，Transformer Rated
● Enclosure: made of galvainized steel sheet
● Rating: 20A continuous duty, 600VAC max
● Jaws: heavy duty tinned copper jaws
● Knockouts: concentric knockouts in the sides and bottom
● Bypass: plunger type bypass closes automatically when meter is removed
● Hub: dia-cast aliminium, size 1/2" to 2-1/2"
Model Description MS20-13L 20A, 13 terminals, ringless type
