Dual Row Terminal Strip

  • Dual Row Terminal Strip

    Housing material --- PE(polyethlene), PA(polyamide).

    Easyto cut to the desired number of pole, each position will accept two wires

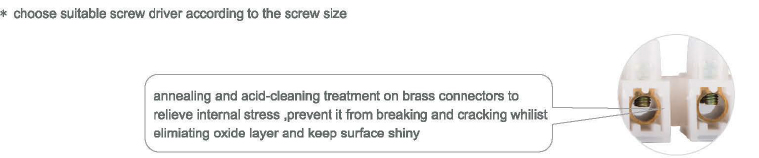

    Current carrier is made of qualified pretreated brass,ensure fine conductivity.

    Recessed set screws ensure reliable wiring contact.

    Screws are steel material, zinc plated.

    Natural color as standard , other colors available at request.

    CodeRated CurrentWire RangeRated VoltageNo.ofPoleScrewSize*
    SP12013A2-4mm380V12M2.5
    SP12026A4-6mm380V12M3.0
    SP120310A6-10mm380V12M3.0
    SP120415A10-12mm380V12M4.0
    SP120520A12-14mm380V12M4.0
    SP120630A16mm380V12M4.0
    SP120760A25mm380V12M4.0
    SP120880A30mm400V12M5.0
    SP1209100A35mm450V12M5.0
    SP1210125A40mm450V12M8.0
