POC

POC

POC

● High quality phosphorized cold rolled steel sheet
● Polyester epoxy powder coated finish,RAL7035 gray
● Knockouts on each sides for easy wiring
● Single phase and three phase
● Provided with neutral and earth terminals
● Comply with IEC,BS EN 60439-3

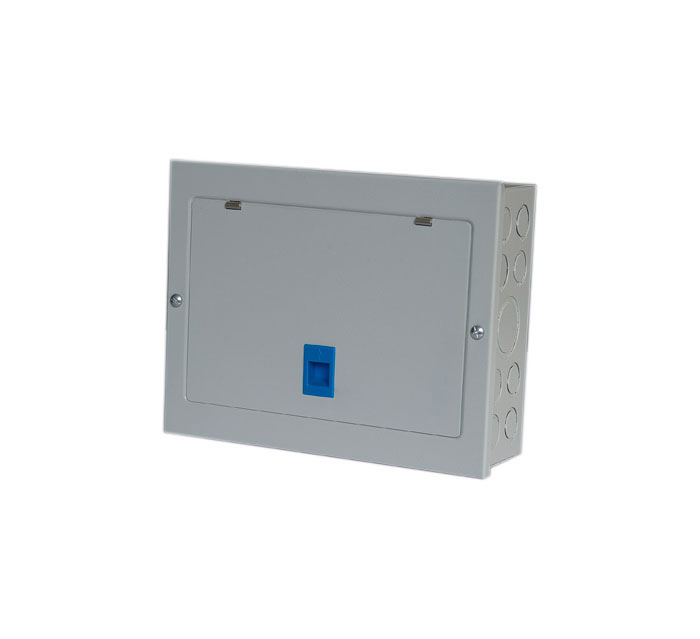

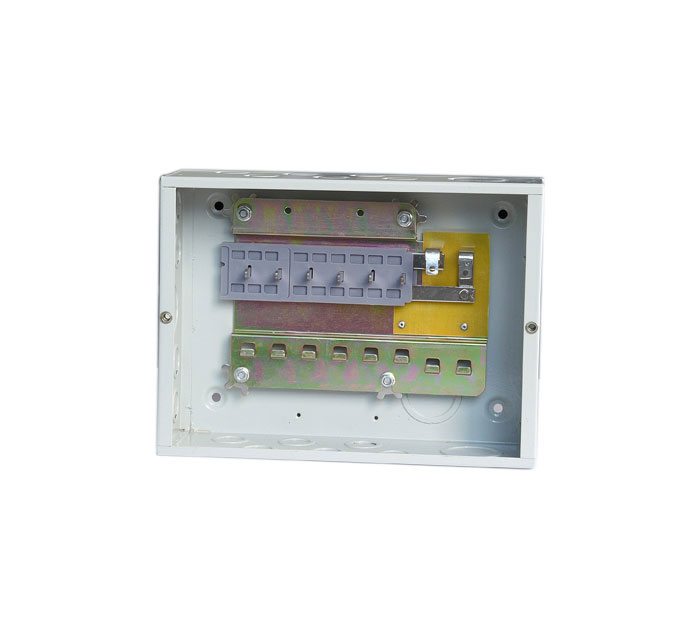

SP&N - surface mounting
Model No.of Way Dimension (mm) Coming Device
H W D
1) RCCB,IsolatoR
2) RCCB+Isolator
POCS04S 4 224 230 95
POCS06S 6 260 230 95
POCS08S 8 296 230 95
POCS10S 10 332 230 95
POCS12S 12 368 230 95

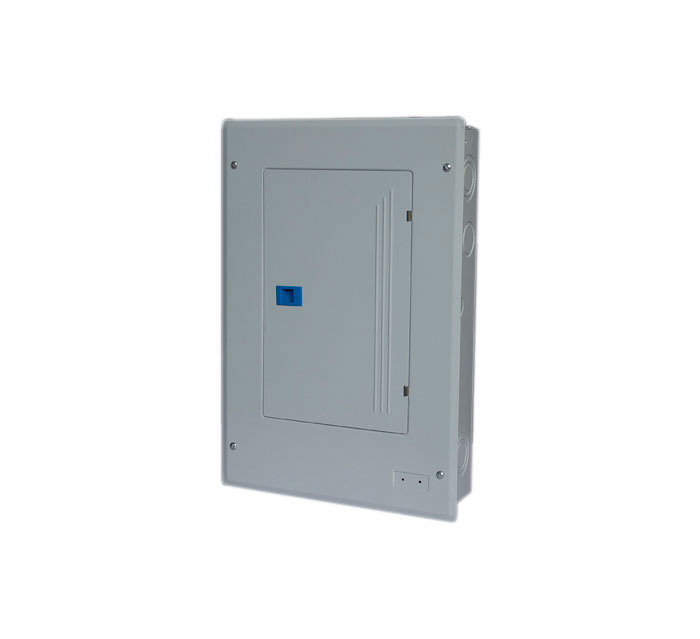

SP&N - flush mounting
Model No.of Way Dimension (mm) Coming Device
H W D
1)MCB
2)RCCB,Isolator
3) RCCB+Isolator
POCS04F 4 239 245 95
POCS06F 6 275 245 95
POCFS08F 8 311 245 95
POCS10F 10 347 245 95
POCS12F 12 383 245 95

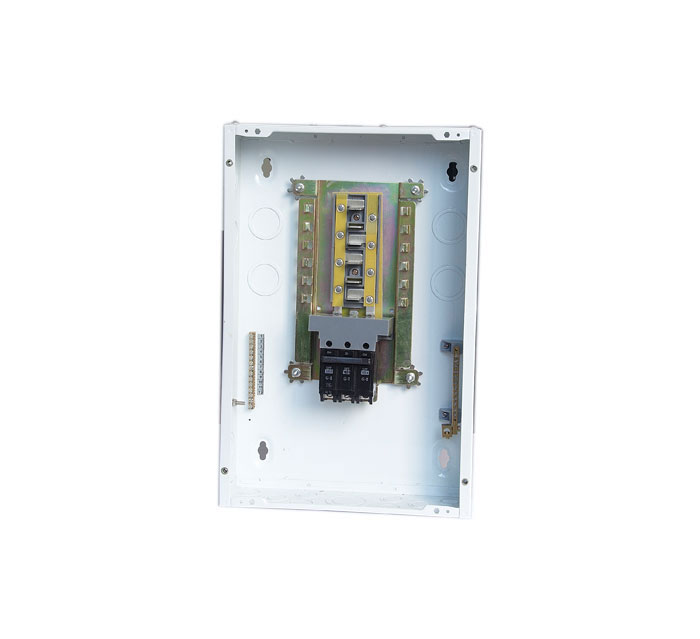

TP&N - surface mounting , fully shrouded tin plated copper busbar
Model 3pole.of Way Dimension (mm) Coming Device
H W D
1)MCB
2)RCCB,Isolator
3) RCCB+Isolator
POCT04S 4 506 350 105
POCT06S 6 560 350 105
POCT08S 8 614 350 105
POCT10S 10 668 350 105
POCT12S 12 722 350 105

TP&N - flush mounting ,fully shrouded tin plated copper busbar
Model 3pole.of Way Dimension (mm) Coming Device
H W D
1)MCB ,MCCB
2)RCCB,Isolator
3) RCCB+Isolator
POCT04F 4 526 370 105
POCT06F 6 580 370 105
POCT08F 8 634 370 105
POCT10F 10 688 370 105
POCT12F 12 742 370 105
Note: Split TP&N available on request
