POD

POD

POD

● High quality phosphorized cold rolled steel sheet
● Polyester epoxy powder coated finish,RAL7035 gray
● Knockouts on top and bottom easy cable entry
● No neutral and earth terminals proviced
● Comply with IEC,BS EN 60439-3

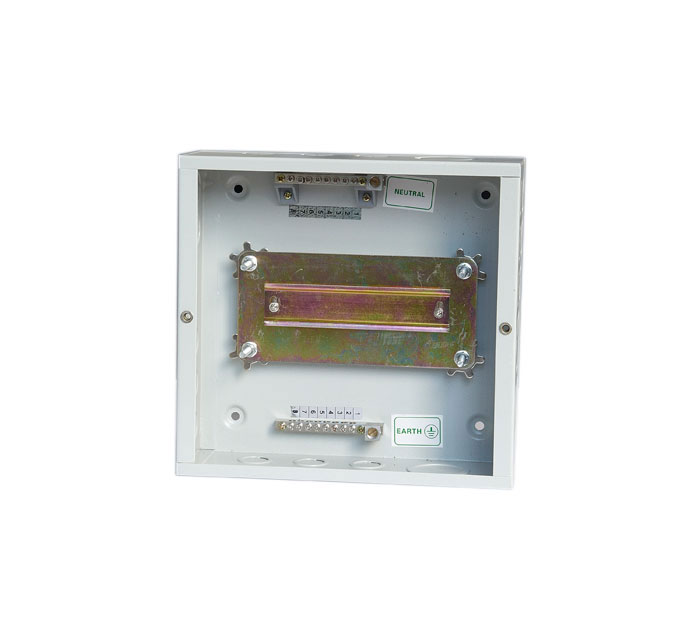

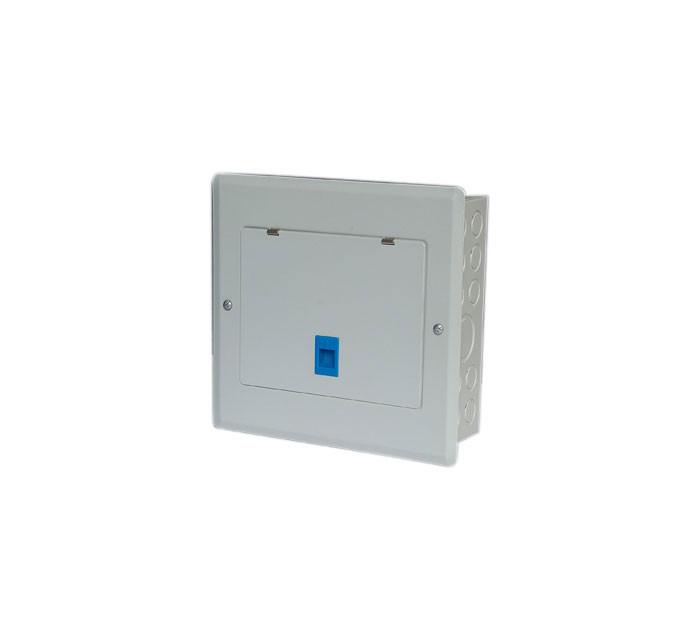

SP&N - surface mounting
Model No.of Way Dimension (mm) Coming Device
H W D
1) RCCB,Isolator
2) RCCB+Isolator
PODS04S 4 224 230 95
PODS06S 6 260 230 95
PODS08S 8 296 230 95
PODS10S 10 332 230 95
PODS12S 12 368 230 95

SP&N - surface mounting
Model No.of Way Dimension (mm) Coming Device
H W D
1)MCB 2)RCCB,Isolator
3) RCCB+Isolator
PODS04F 4 239 245 95
PODS06F 6 275 245 95
PODS08F 8 311 245 95
PODS10F 10 347 245 95
PODS12F 12 383 245 95

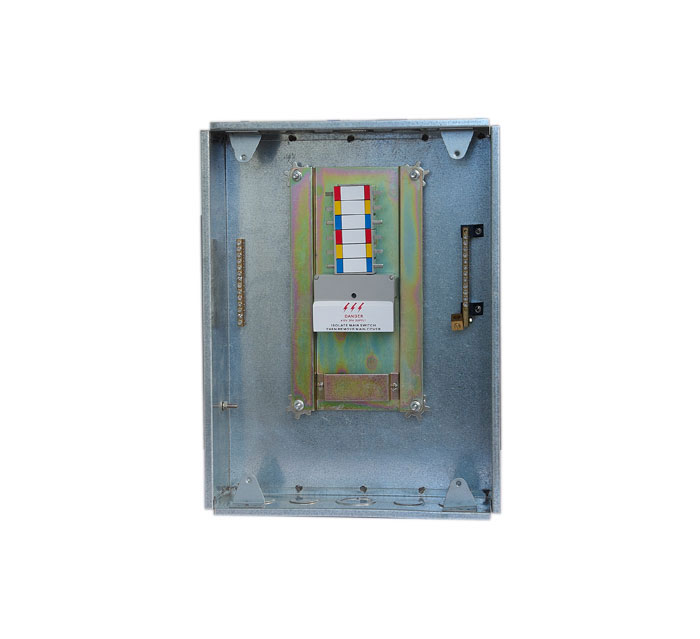

TP&N - surface mounting , fully shrouded tin plated copper busbar
Model 3pole.of Way Dimension (mm) Coming Device
H W D
1)MCB 2)RCCB,Isolator
3) RCCB+Isolator
PODT-04S 4 506 350 105
PODT-06S 6 560 350 105
PODT-08S 8 614 350 105
PODT-10S 10 668 350 105
PODT-12S 12 722 350 105

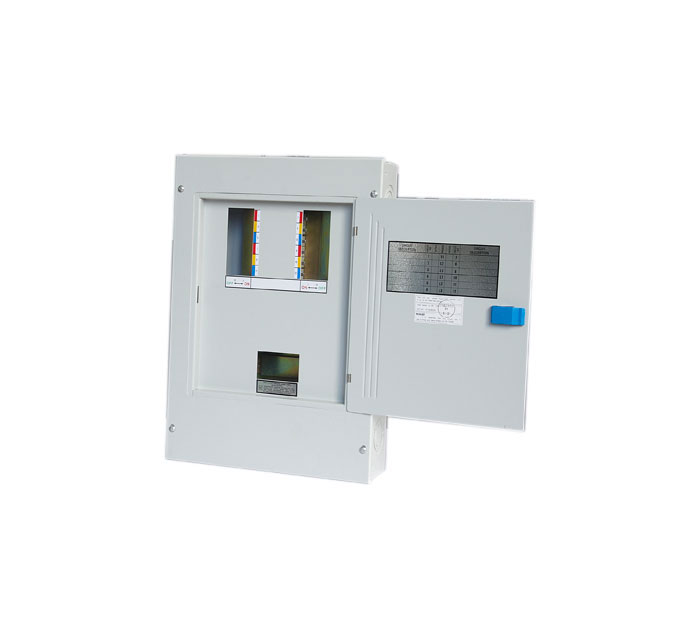

TP&N - flush mounting ,fully shrouded tin plated copper busbar
Model 3pole.of Way Dimension (mm) Coming Device
H W D
1)MCB ,MCCB
   2)RCCB,Isolator
     3) RCCB+Isolator
PODT-04F 4 526 370 105
PODT-06F 6 580 370 105
PODT-08F 8 634 370 105
PODT-10F 10 688 370 105
PODT-12F 12 742 370 105
Note: Split TP&N available on request
