POG
POG
-
POG

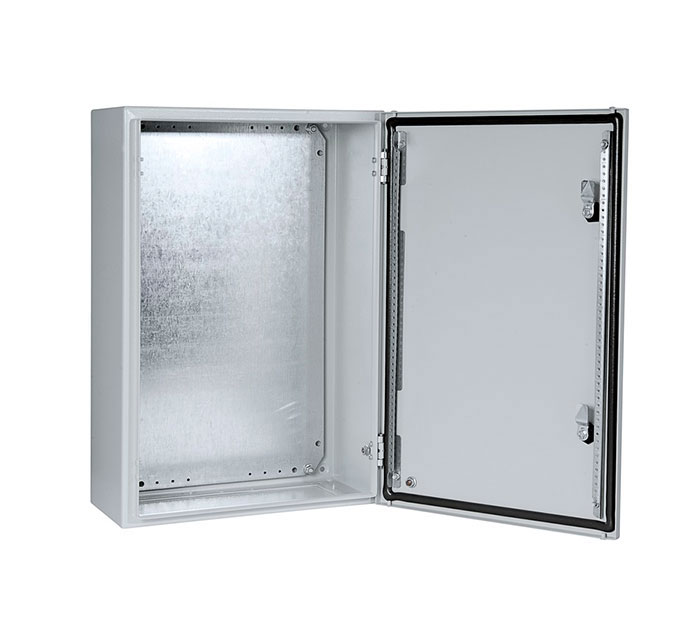

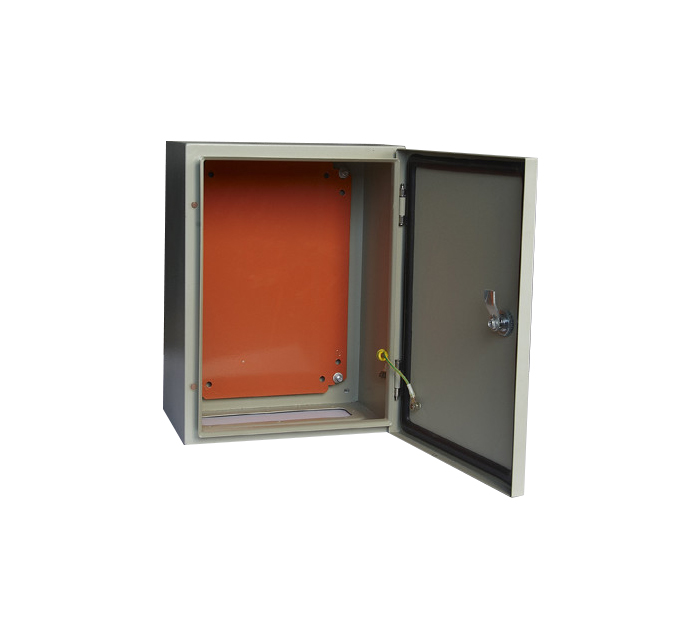

● Enclosure is made of continuous length of pre-treated steel sheet, double folded at the front and back welded to the frame ,ideal for demanding surroundings
● One-piece of foamed-in polyurethane gaset inside ensures perfect protection against water and dust
● Complete with removeable cable gland plate, gaset,key
● Concealed and removable hignes allow over 120 opening
● 4 welded studs for fixing of mounting plate
● Earthing facilities on the door and body
● IP66 protection degree to IEC60529Model Dimension (mm) No.of Locks H W D POG-2020/15 200 200 150 1 POG-2020/15 250 200 150 1 POG-2025/15 250 250 150 1 POG-2025/15 300 200 150 1 POG-3020/20 300 200 200 1 POG-3020/15 300 250 150 1 POG-3025/20 300 250 200 1 POG-3025/25 300 250 250 1 POG-3030/15 300 300 150 1 POG-3030/20 300 300 200 1 POG-3030/25 300 300 250 1 POG-4030/15 400 300 150 1 POG-4030/20 400 300 200 1 POG-4030/25 400 300 250 1 POG-4030/30 400 300 300 1 POG-4040/15 400 400 150 1 POG-4040/20 400 400 200 1 POG-4040/25 400 400 250 1 POG-4040/30 400 400 300 1 POG-5030/15 500 300 150 1 POG-5030/20 500 300 200 1 POG-5030/25 500 300 250 1 POG-5030/30 500 300 300 1 POG-5040/15 500 400 150 1 POG-5040/20 500 400 200 1 POG-5040/25 500 400 250 1 POG-5040/30 500 400 300 1 POG-5050/15 500 500 150 1 POG-5050/20 500 500 200 1 POG-5050/25 500 500 250 1 POG-5050/30 500 500 300 1 Model Dimension (mm) No.of Locks H W D POG-7040/15 700 400 150 2 POG-7040/20 700 400 200 2 POG-7040/25 700 400 250 2 POG-7040/30 700 400 300 2 POG-7050/15 700 500 150 2 POG-7050/20 700 500 200 2 POG-7050/25 700 500 250 2 POG-7050/30 700 500 300 2 POG-7060/15 700 600 150 2 POG-7060/20 700 600 200 2 POG-7060/25 700 600 250 2 POG-7060/30 700 600 300 2 POG-8060/20 800 600 200 2 POG-8060/25 800 600 250 2 POG-8060/30 800 600 300 2 POG-8070/20 800 700 200 2 POG-8070/25 800 700 250 2 POG-8070/30 800 700 300 2 POG-8080/20 800 800 200 2 POG-8080/25 800 800 250 2 POG-8080/30 800 800 300 2 POG-1006/20 1000 600 200 2 POG-1006/25 1000 600 250 2 POG-1006/30 1000 600 300 2 POG-1006/40 1000 600 400 2 POG-1007/20 1000 700 200 2 POG-1007/25 1000 700 250 2 POG-1007/30 1000 700 300 2 POG-1007/40 1000 700 400 2 POG-1008/20 1000 800 200 2 POG-1008/25 1000 800 250 2 POG-1008/30 1000 800 300 2 POG-1008/40 1000 800 400 2 POG-10010/20 1000 1000 200 2 POG-10010/25 1000 1000 250 2 POG-10010/30 1000 1000 300 2 POG-10010/40 1000 1000 400 2 POG-1206/20 1200 600 200 2 POG-1206/25 1200 600 250 2 POG-1206/30 1200 600 300 2 POG-1206/40 1200 600 400 2 POG-1207/20 1200 700 200 2 POG-1207/25 1200 700 250 2 POG-1207/30 1200 700 300 2 POG-1207/40 1200 700 400 2 POG-1208/20 1200 800 200 2 POG-1208/25 1200 800 250 2 POG-1208/30 1200 800 300 2 POG-1208/40 1200 800 400 2 POG-12010/25 1200 1000 250 2 POG-12010/30 1200 1000 300 2 POG-12010/40 1200 1000 300 2 Note: Double door/Stainless steel version are vailable on request .Mounting brackets are available ,4pcs for each enclosure ,but not included as standard supply. Mounting plate can be either galvanized steel without coating or steel sheet in orange coating,RAL2000
