DC Switch Disconnector
-

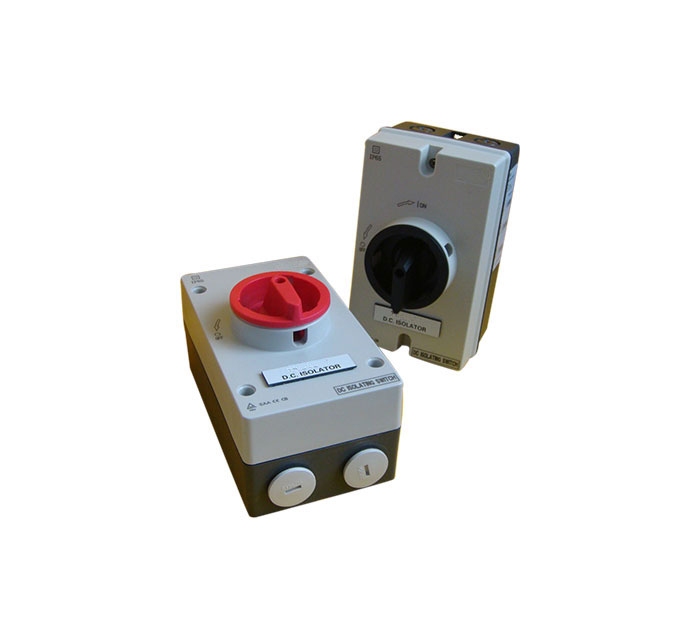

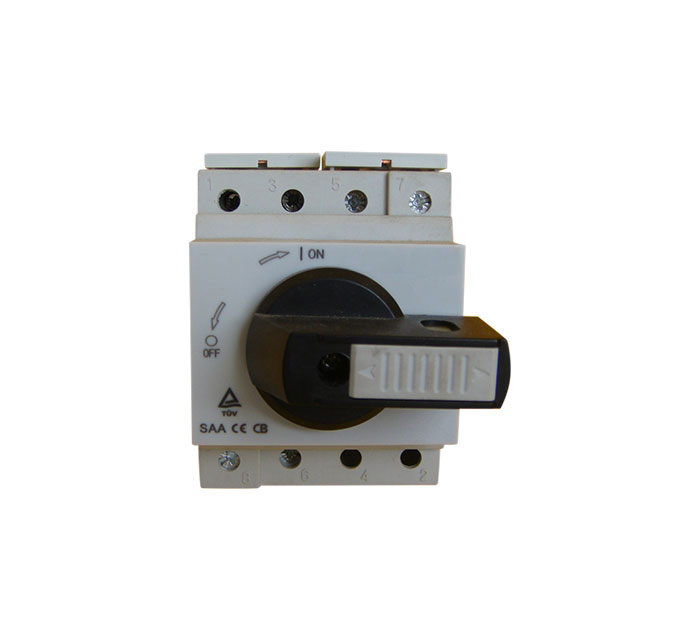

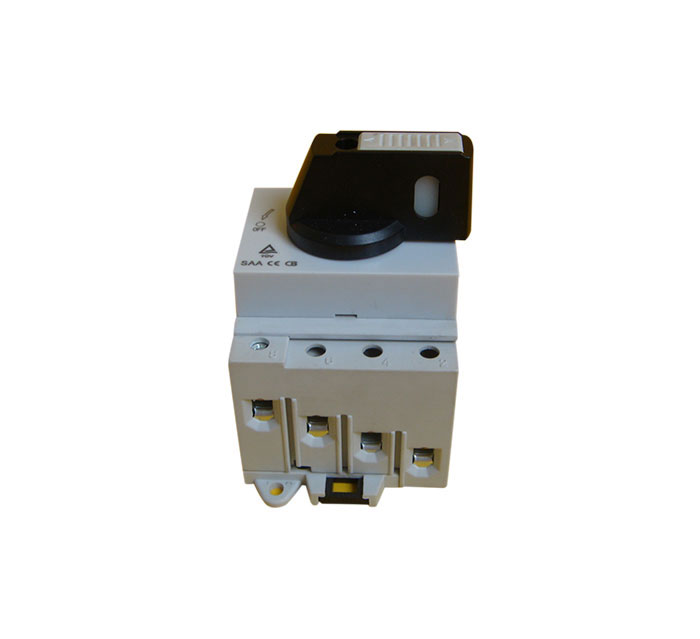

DC Switch Disconnector for PV application
● IP65 polycarbonate enclosure, ,UV stablized
● 16A,25A & 32A all rated up to 1000V DC.● Unique spring loaded switching mechanism for high speed switching(5mS max).
● Knife edge self-cleaning contacts ensure longer switch life.
● Long arc chambers enables rapid arc suppression
● 16mm2 rising clamp terminals for easy wiring
● TUV Approval, comply with IEC60947-3, DC21B
Technical Data
Model HGN4 Knockouts Size M20/25 Standard IEC60947-3 Cable Size 4-16mm2 Rated Current 16A,25A,32A Max Rated Voltage 1000DC Poles 2pole, 4pole Mechnical Life 10000 IP Rating IP66 Rated short-time withstand current ( Uimp ) 8KA Ambient Temparature,open operation -5 to +65℃ Ambient Temparature,open operation -5 to +45℃ Mounting Din-rail or Wall Utilization Category DC-21B Speficication

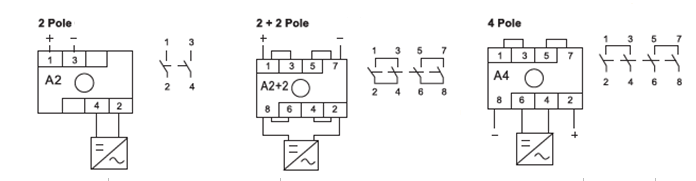

Model Connections 500V 600V 800V 900V 1000V HGN4-16DC 2 pole in series 16A 16A 16A 16A 9A 2 pole in series +2 parallel 29A 29A 13A 13A 9A 4 pole in series 16A 16A 16A 16A 16A HGN4-25DC 2 pole in series 25A 25A 13A 13A 11A 2 pole in series +2 parallel 45A 45A 13A 13A 11A 4 pole in series 25A 25A 25A 25A 25A HGN4-32DC 2 pole in series 32A 32A 13A 13A 13A 2 pole in series +2 parallel 50A 50A 13A 13A 13A 4 pole in series 32A 32A 32A 32A 32A Wiring Diagram
